It is necessary to fill the chlorite compartments up to the black line, which is approximately equivalent to 200 ml of chlorite, for a quantity of 2-2,5 liters of water. The semi-permeable membrane inside the generator must be completely covered for the process to run properly. A smaller quantity cannot be produced, as it is important to complete the process in each session.

The estimated time to obtain 3000 ppm concentration is 7-8 hours. When carrying out this process, it is essential to take into account the following aspects:

1. The water in the external 2 liter bottle must be distilled or low mineralization.
2. VERY IMPORTANT: cold water must be used, between 5-8º C, to obtain a better saturation of the CDS.

The acronym ppm stands for “parts per million” and is used to express a measure of concentration of a substance in a solution. This unit of measurement is common to describe low concentrations of solutes in solutions.

In the case of the electrolytic generator, when a concentration of 3000 ppm of chlorine dioxide is indicated, reference is made to the amount of chlorine dioxide present in the solution produced. This concentration indicates that there are 3000 parts of chlorine dioxide for every million parts of the solution. A concentration of 3000 ppm suggests high purity and efficiency in the chlorine dioxide production process.

Throughout the electrolysis process in the aforementioned generator, the liquid in the solution compartment will undergo color changes in four stages: from colorless transparent to dark brown, then to light yellow, and finally back to transparent. Simultaneously, the liquid in the absorber bottle will turn a golden yellow hue.

When the liquid in the solution compartment turns from dark brown to clear, it indicates that the active components of the sodium chlorite solution have been completely depleted. This signal suggests that the process is complete and that the electrolytic generator can be switched off.

Once the process is finished, it is necessary to bottle the solution and always keep it in the refrigerator. Without opening the CDS bottle, its durability can be extended from 6 to 8 months. For this reason, it is recommended to store it in smaller bottles, since each time it is opened and closed, the solution loses ppm.

After that period of time, the solution does not become useless, but rather its intensity gradually decreases.

It is recommended to pack the CDS in 250 ml amber glass bottles, individually, and keep them inside the fridge. It is important to avoid blue bottles, as they allow the passage of ultraviolet rays. In addition, polyethylene caps can be used to seal the bottles.

To measure the concentration of CDS in water, 1 ml of the resulting CDS must be added after 6/8 hours of activation in an empty glass containing 9 ml of water. Then it should be shaken slightly and immerse the test strip for about 5 seconds. Finally, the ppm can be checked using the colors that appear on the package that contained the strips. It is important to follow the instructions carefully to obtain an accurate measurement of the CDS concentration in the water.

The product can be purchased from online stores available in your country. It is important to take into account that it must be reduced between 25 and 28% to be compatible with the equipment and guarantee the highest possible quality.

You have a user manual where we explain step by step everything you need to know to start using the chlorine dioxide generator. In this manual we expand the information that you will find on our website as well as the steps to follow so that you can start using the equipment as soon as possible. It is available in multiple languages.

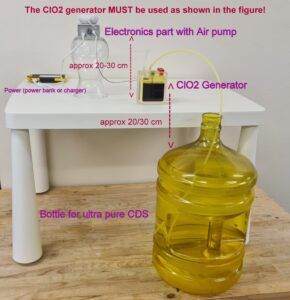

CPlace the elements of the Generator in this position for adequate production, in such a way that the air pump is above the liquid level.

For maintenance of the electrolytic generator, follow the instructions below:

1. Clean the inside of the compartments after each use, using distilled water several times (at least 3 times).

2. Fill both compartments with an approximate amount of 200 ml of distilled water to maintain humidity in the semi-permeable membrane located inside. Once filled, close them using the corresponding caps.

3. Connect the air inlet nozzle to the gas outlet nozzle using the shorter tube, ensuring proper sealing.

Our prices are in Euros, so if you want to know the price of the equipment in your local currency, we recommend that you visit this online currency converter to make the conversion with the exchange rate in real time.

A two-year warranty is provided for the generator and a six-month warranty for consumable components such as cables, charger, air motor, and carrying case. Warranty coverage is applicable only in case of manufacturing defects.

To find out the price of the shipping costs, you can add the equipment to the shopping cart, once in the cart, you only have to enter your address for the calculation to be made. To know the shipping costs it is not necessary to register, but you must do so to make the purchase.
